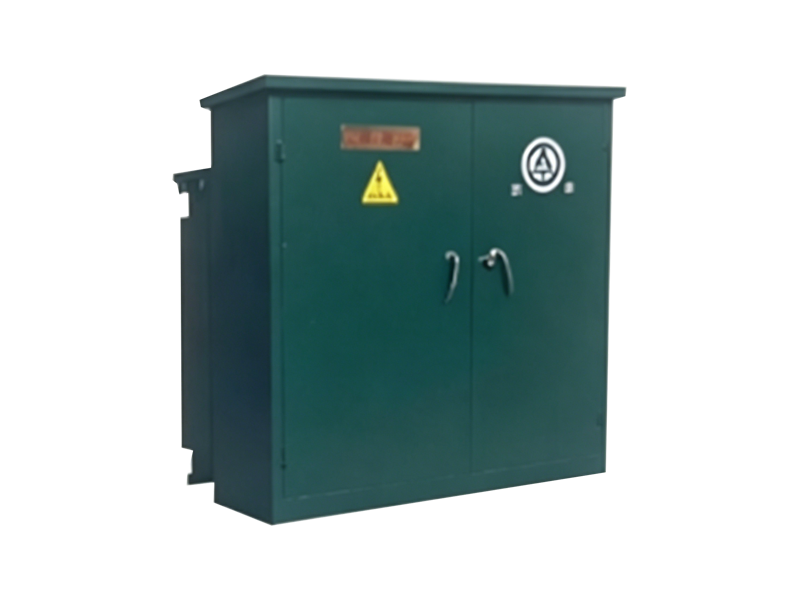

a. Rated transformer capacity ≤1600 kVA

b. Rated voltage: HV side 10 kV, LV side 400/230 V

c. Rated HV switch current ≤630 A

d. HV switch thermal stability current 16 kA (2 s)

1. The HV circuit is installed inside the transformer tank, using transformer oil as both the insulation and cooling medium. The product is compact, lightweight and highly reliable.

2. All black-finished materials undergo surface anti-corrosion treatment; the base is made of stainless steel for long-term corrosion resistance.

3. HV incoming and outgoing connections use fully insulated construction for enhanced safety.

1. Substation model and quantity

2. Transformer model and parameters

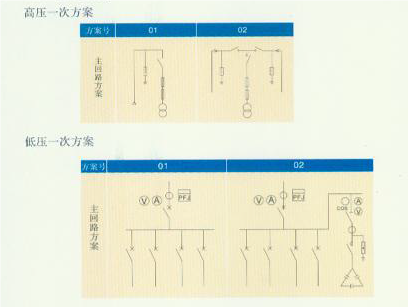

3. Primary HV/LV scheme and main component models

4. Other special requirements
